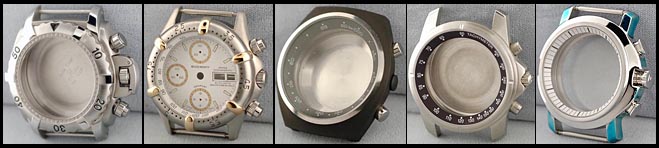

Watch Cases

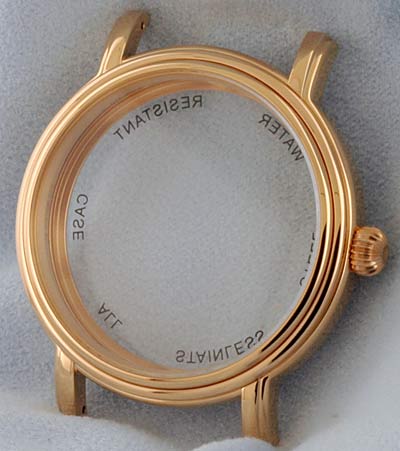

100% Stainless Case Style #1 With See-Thru Back


CASE #1 AVAILABLE AGAIN!

36 mm Diameter Case for ETA 11 1/2 ligne Movements
Sellita SW200-1, SW210-1, SW220-1, ETA 2801-2, 2804-2, 2824-2, 2836-2

Case diameter is 36 mm with a height of 10.40 mm and takes dials with diameters of 28.0 to 28.7 mm the dial opening is 27.5 mm. Crown diameter is 5.5 mm and case tube diameter for the crown is 2.5 mm. The Watch Lug band lug size is 18 mm on this screw-back, 3 ATM water resistant case.




Watch Cases #10, 41 mm for ETA 6497 & 6498

Watch Case #10 has mineral glasses on front and flat mineral glass on the back.


Watch Case 45 mm Style #7 Sapphire Glass & #8 Mineral Glass to Fit ETA 6497-1 and 6498-1

See Thru "Exhibition Back" Watch Cases in Stainless Steel and Rose Gold PVD Plated

45 mm Diameter Watch Case for ETA 6497-1 and ETA 6497 Watch Movements




Stainless Steel 10 ATM, 42 mm Cases For SELLITA and ETA Mechanical Watch Movements

New 42 mm Diameter Cases, Water Resistant to 10 ATM
For ETA and SELLITA Swiss Made Movements, SW200-1, SW210-1, SW220-1, ETA 2801-2, 2824-2, 2836-2


Watch Case Style #2 For Quartz Mvt's

For Ronda 515 Swiss Made 11 1/2 Ligne Quartz Movement


Watch Case Styles # 4 for ETA 2824-2 & 2836-2 and Sellita SW200-1, SW220-1

Case Style #4 with Solid Back Stainless Steel Case
Case style #4 will accommodate the following mechanical movements ETA 2801-2, 2804-2, 2824-2, 2836-2, Sellita SW200-1, SW210-1, SW220-1. The Miyota 8215 will not fit in any of the cases we supply, since the Miyota 8215 is thicker and will not fit inside any our of cases.


Click Here For Antique Ladies Watch Cases



Click Here For Antique Gents Watch Cases



Watch Cases to fit Elgin Movements



Watch Cases to fit Font Movements



Watch Cases to fit Gruen Movements



Watch Cases without Dials



Watch Crystal & Case Back Protection Pads - Masking Sheets & Rolls



Mechanical Watch Movements

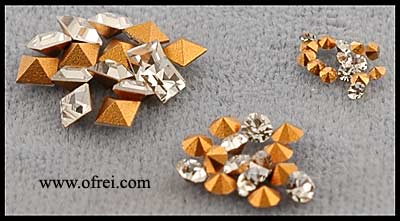

Foil Back Glass Stones For Watch Dial & Case Made in Europe



Horotec Clockwise Spinning Polisher MSA 23.501

Ball bearing handle with right sided vice (clockwise spin).

Polishing system developed for the watch industry and particularly for finishing watch cases. This tool includes a vice with 4 brass jaws (tightening from diameter 14 to 34 mm) mounted on ball bearings to allow polishing without the risk of any flattening on the item being worked on (watch cases, bezel, case back, ring, etc.). As soon as the item comes in contact with the brush, the polisher starts turning at the same speed as the brush.

Special order item. Please allow 4-6 weeks for deliver.

MSA 23.501
$849.00

order.gif  checkout.gif



Horotec Counter Clockwise Spinning Polisher MSA 23.502

Ball bearing handle with left sided vice (counter clockwise spin).

Polishing system developed for the watch industry and particularly for finishing watch cases. This tool includes a vice with 4 brass jaws (tightening from diameter 14 to 34 mm) mounted on ball bearings to allow polishing without the risk of any flattening on the item being worked on (watch cases, bezel, case back, ring, etc.). As soon as the item comes in contact with the brush, the polisher starts turning at the same speed as the brush.

Special order item. Please allow 4-6 weeks for deliver.

MSA 23.502
$849.00

order.gif  checkout.gif



Horotec 23.503 Universal Tool for Polishing Case Backs & Bezels

This polishing tool is used for finishing watch cases, bezels, rings, case backs and more. Equipped with 4 brass jaws that opens from 25 mm to 50 mm in diameter to handle larger case backs.

Manual Use: Attach item to polish onto the jaws. Hold tool on one hand and polish piece with a cleaning cloth with the other without ever touching the item. Gently lay down the item onto a clean cloth and loosen the jaws to release the piece.

Motor Use: Attach item to polish onto the jaws. Fix the tool onto a 13.90 mm polishing motor arbor and tighten it with 2 screws using the provided hexagonal key. Make sure all parts are safely tighten before turning on the machine. While motor is spinning, apply buff or cleaning cloth gently onto the piece to polish as desired.

Special order item, please allow 4-6 weeks for delivery

MSA 23.503
$289.95

order.gif  checkout.gif



Plastic Movement Holders 72 Piece Assortment Most Popular Ladies Sizes

72 pieces assortment of plastic movement holders. Assortment includes: 22 pcs for MIYOTA 2035,5 pcs for MIYOTA 5Y30, 10 pcs for MIYOTA 2005 and 2015, 10 pcs for ESA 956.114 and other 7 3/4 ligne movements, 10 pcs for ESA 956.414 and other 8 3/4 ligne movements, 15 pcs for MIYOTA 2105 and 2115.

ASST-MH
$24.95

order.gif  checkout.gif



Plastic Movement Holders For 7 3/4 Ligne Movements

Kit include 12 pieces of 7 3/4 ligne and height 2.50mm movement rings for ETA 956.112 and ETA 956.032

ASST-676/4
$7.95

order.gif  checkout.gif



Case Clamps Assortment of 144

The FC144 case clamps assortment contains a lot of the same case clamps used in certain Omegas. A total of 100 pieces.

ASST-FC144
$36.95

order.gif  checkout.gif



TimeZone.Com On-line Watch School

Learn the Basics of Watch Repair while making your own Watch


Automatic Watch Winders



Tools & Supplies Needed to Assemble a Watch

Beware of Cheap Tools made in India and China sold at certain websites. Cheap tools are cheap because they are cheaply made of poor quality materials. We do not supply cheap poor quality tools.

Your going to need a pair of Tweezers to hold the hands while setting the hands. A hand setting tool is needed, some people make their own by hallowing out a piece of pegwood or something else. Hand remover is certainly useful and so is dial protection while installing and removing hands. A movement holder is needed when installing stem, dial and hands. The stem in the movements needs to be removed, some watches have screw others a pin hole needs to be press in. The stem then need to be measured and cut to length needed. A file is need to file down flat any burs left over after cutting the stem. When installing the stem into the crown a pin vise is needed to hold the stem tight, so it can be screwed in tight into the crown. Before screwing the stem in some like to use just the smallest amount at the tip of loctite, crystal glue or crazy glue. Case opener/closer, dust bower, eye loupe and screwdrivers are all basic tools of the trade.



Dials for Watches and American Pocket Watches

Sometimes people call them Watch Faces
While, the watch industry's name for them is just Dial.


Watch Bands & Straps

Click Here for our complete selection of Watch Bands and Straps of all kinds including JB Champion Bracelets, Leather, Metal, Rubber, Nylon and more!


Jewelry - Chains - Money Clips & More - Otto Frei www.ofrei.com

Jewelry Liquidation Sale
The Otto Frei Jewelry Department is Closing Out All Jewelry Products
While the Otto Frei Jewelry Department isn't 90 years old, like the Watch Material Department. Still, Otto Frei has sold some of these Jewelry Products directly to retail jewelers for more than 80 years.



Horotec 23.500 Universal Tool for Polishing Case Backs & Bezels

This polishing tool is used for finishing watch cases, bezels, rings, case backs and more. Equipped with 4 brass jaws that opens from 14 mm to 34 mm in diameter to handle larger case backs.

Manual Use: Attach item to polish onto the jaws. Hold tool on one hand and polish piece with a cleaning cloth with the other without ever touching the item. Gently lay down the item onto a clean cloth and loosen the jaws to release the piece.

Motor Use: Attach item to polish onto the jaws. Fix the tool onto a 13.90 mm polishing motor arbor and tighten it with 2 screws using the provided hexagonal key. Make sure all parts are safely tighten before turning on the machine. While motor is spinning, apply buff or cleaning cloth gently onto the piece to polish as desired.

MSA 23.500
$279.95

order.gif  checkout.gif
