Spring Bar Tools



$22.95
First-Quality Spring Bar Tool

This is the best spring bar tool on the market. Max Sussman, who gave me a sample many years ago (1984-85?), discovered it. I did not think much of it at first, and it spent about a year in my desk. One day a customer came in and wanted help removing bars from a Seiko Divers Watch. We tried everything, and then I remembered that this tool was in my desk. Within seconds we had the spring bars removed and I have never used another tool since. It took me about three years to convince Bergeon to sell this tool, while the guy from India was ready to copy it the first time I showed him the tool. It comes with one tip that is reversible: a small fork on one end and a pin pusher on the other. The other tip is a large fork, which is the most useful end for removing spring bars quickly on leather straps and is the end which will remove the bars on Seiko rubber divers bands. The small fork is for grabbing spring bars for the backside of metal bands. Bergeon is not the Swiss maker of this tool, however Bergeon sells this item by the number 6111.

There is no doubt among the users of this tool the it is the best spring bar tool to buy. I have been using spring bars tools for over 40 years now and no other tool is even worthy of your consideration. Do not be fooled by the claims of those who simply never used this tool. Here are some comments of real users: "The small fork is exactly the same size on the FB-504 (6111) as the AF17.450/BERG-6767-F, which measures 1.20 mm; the pin is exactly the same size on each. The advantage of the 6111 is that you can get the larger spade fork in addition to the pin & small fork tips. I don't believe it's an option for the other model. The 6111 tips are double-ended, with a pin on one end and a fork on the other, which may help you decide. The collets lock the tip in place, while the other tool's tips screw in. I have both, by the way. I use the 6111 99% of the time. Sometimes you need to use two at the same time, which is why I have another."
Another person writes, "I've owned the 6111 (FB-504) for years and love it, I've currently got the small fork on one end and the small pin on the other, it's a very useful tool. The large fork is useful for pushing straps out of the way in order to get to the spring bar flanges."

"Watchmakers Tip" when faced with a design that requires both end of the spring bars tip to be removed at the same time. Simply remove one end first and block the tip from going back into the hole with a piece of paper and then proceed to remove the tip on the out side so you can now remove the bracelet.

FB-504
$22.95


Quantity   1      2 - 9     10 - 99     100+
Price $22.95 $21.95 $19.98 $17.95



First-Quality Bergeon 6111 Spring Bar Tool With Bergeon's Name Stamped On It

This is the exactly the same tool as the FB-504, which now sells for an unbelievable low price of $22.95 and made at the same factory in Switzerland. The only thing different is this tool has the name Bergeon Stamped on, comes in a yellow Bergeon box and cost $37.94 instead of $22.95 This tool is for those who have to have tools stamped with the Bergeon name and wants the yellow box. Please be aware that others might sell this Bergeon 6111 spring bar tool and call it the Bergeon tool, however it does not have the Bergeon name or part number stamped on it and does not come in the Famous Yellow Bergeon Box. Nickel-plated and knurled handle. Length : 140 mm.

BERG-6111
$37.94




Set of Two Tips for First-Quality Spring Bar Tool

Swiss made for the FB-504, BERG-6111 and also the FB-550 Spring Bars Tools.

FB-505
$8.00





Fork End For The First-Quality Spring Bar Tool

Large Fork Tip.

Swiss made for the FB-504, BERG-6111 and also the FB-550 Spring Bars Tools.

6111E
$4.00





Reversible Pin & Small Fork End For The First-Quality Spring Bar Tool

Swiss made for the FB-504, BERG-6111 and also the FB-550 Spring Bars Tools.

6111D
$4.00






Standard Original Bergeon 3153 Black Body Spring Bar Tool

I think this tool is a waste of time and money. Sure this was state of the art 50 years ago; still some people have yet to be enlightened so we still sell this Swiss made tool. You will not see me wasting my time trying to use this tool, but that shouldn't stop you from trying it, I just might be wrong. It's just that I've been replacing straps for 30 years now.

FB-500
$16.95




Forked Replacement Tips for FB-500

Swiss made for the (FB-500) BERG-3153 Black Body Spring Bars Tools.

FB-501
$2.60





Pin-End Replacement tips for FB-500

Swiss made for the (FB-500) BERG-3153 Black Body Spring Bars Tools.

FB-502
$1.40






$189.00 $149.30 On Sale!
Bergeon 6825 Pliers to Fit Spring Bars
Sale Item! Otto Frei 84 Years of Watch Parts Supplies

This Bergeon Tool 6825 was designed to help with the installation of new modern bracelets like those made by Omega and a few others. You can search the web and find it selling at other site at $189.00 and even $199.00, while our 84 years celebration price is only $149.30 Does not work on Rolex® Bracelets, for those use the First-Quality Spring Bar Tool or the Bergeon 6825-PF with fine fork tips. Otto Frei, www.ofrei.com is not affilated or sponsored by Rolex® Watch U.S.A

Place spring bar in the bracelet, compress the spring bar with the tool, lock it, then put the bracelet in place and release and lift the pliers. The width adjusts from 10 to 30 mm and locks by turning a screw. The tool has notches for positioning of the forks from 0 to 45 degree angle for easy of use. Stainless steel forks that come with these pliers are reversible, 1.3 mm fork opening thickness at tip end .33 mm and tube body diameter 1.65 mm. (Does not come with optional BERG-6825FF tips)


Bergeon 6825

BERG-6825
$149.30 On Sale!

order.gif  checkout.gif



$189.00 $149.30 On Sale!
Bergeon 6825-PF Pliers to Fit Spring Bars
Sale Item! Otto Frei 84 Years of Watch Parts Supplies

Out of stock. We are expecting more to arrive by early September. Same as Bergeon 6825 Pliers to Fit Spring Bars, but comes with Bergeon 6825-FF Fine Fork Points instead of the standard fork end.

Not For Omega! If you are working on Omega Bracelets use the Original 6825 with normal size tips. This tool has the fine tips and it was developed a year or so later. Bergeon cannot say that any of its tool work on Rolex®, however the feedback from customers is that this tool will work on that brand. Otto Frei, www.ofrei.com is not affilated or sponsored by Rolex® Watch U.S.A


The 1.40 mm diameter of the forks will not fit on watches with smaller spring bar opening. Please measure the opening as shown in photo before ordering.

BERG-6825-PF
$149.30 On Sale!

order.gif  checkout.gif



$16.52
Replacement Fork / Tip For Bergeon 6825 Pliers to Fit Spring Bars

Stainless steel forks are reversible, 1.3 mm fork opening thickness at tip end .33 mm and tube body diameter 1.65 mm. Sold Per Piece.

BERG-6825F
$16.52





Spare Fork Fine Points, Sold Per Piece For Bergeon 6825 Tool

Spare Fork Fine Points for the BERG-6825 spring bar tool. These are the replacement fine replacement tips for the Model 6825-PF with fine tips. If your purchased a 6825 with the regular size tips, then just purchase two of these fine point tips to handle all the jobs that require fine points.

Stainless steel forks are reversible, 1.1 mm fork opening thickness at tip end .23 mm and tube body diameter 1.40 mm.

BERG-6825FF
Out of stock. We are expecting more to arrive by early September

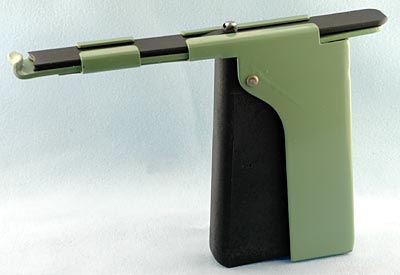

Horotec Tool For Bending Spring Bars

This is the top of the line spring bar bending tool by Horotec. If you don't own this tool, then you don't got the best. Tool with 110 mm lever allowing to easily curve some of the thickest spring bars. Used to bend spring bars for a nice curve. Equipped with 2 spring bar slots to give customize bending according to length without damaging the spring bar.


MSA-10.311
$135.00





Bergeon's 7812 Quick Service Set in Hard Case

This set is a watchmaker's dream for sizing watch bands and replacing batteries. Comes with 18 specialized tools and accessories in a hard plastic travel case:
Steel spring bar tool (6767-S), jxa mini case wrench with square pins (2819-MINI), wtchmakers pocket/case knife (7403), 5x eye loupe (2611-2.5), non-magnetic tweezer #00 (7026-00) 2 stainless screwdrivers and replacement blades 1.00mm and 1.60mm (30081-100, 30081-160, 6899-M-100, 6899-M-160), plastic battery tweezer with steel lip (6460-P), screw type bacelet pin remover (7230), flat nose plier (2510-N), microfiber cleaning cloth (7039), flexible bracelet gauge (6789) 1 spare fork tip for spring bar tool 6767-S (6767-A) , 1 spare pin tip for spring bar tool 6767-S (6767-B), 1 plastic tube (30080-TN). Click here to order the tools individually.

BERG-7812
$219.00





Bergeon Standard Nickel-Plated Brass Spring Bar Tool

Handle in polish nickel-plated brass, points in hardened tempering steel. Length : 145 mm

BERG-6767-S
$15.00

order.gif  checkout.gif


Replacement Point Tip for BERG-6767-S

Point Tip.

6767-B
$3.50





Replacement Small Fork Tip for BERG-6767-S

Small Fork Tip.

6767-A
$4.80






Fine Tip Bergeon Standard Nickel-Plated Brass Spring Bar Tool BERG-6767-F

The diameter of the metal near the Fine Fork is the same measurement as those found on the better more popular FB-504 tool for spring bar removing, which measures 1.20 mm. Reports for the field suggest that certain bracelets made by the Swiss brand with a crown in its symbol and staring with an "R" in its name can be removed by an experienced technician in spring bar removal. This tool is just another reminder of a known fact that no shop is complete without multiple tools available to handle what seems to be a simple task. Spare tips are available.

BERG-6767-F
$15.00

order.gif  checkout.gif


Replacement Point Tip for 6767-F

Point Tip.

6767-BF
$3.50





Replacement Small Fork Tip for 6767-F

Small Fork Tip.

6767-AF
$4.80






Horotec Tweezer for Removing Spring Bars

New Horotec tweezer for removing spring bars. INOX, sandblast with mirror polish tip. Designed to insert/remove double shoulder and double flange spring bars with one easy sqeeze of the tweezer. Not for use on single shoulder spring bars. Length: 120 mm. Tips are about 1.30 mm wide.

MSA-10.306
$39.50

order.gif  checkout.gif



Economy Spring Bar Tool

Economy spring bar tool with forked end and pin end. Forked end measures 1.80 mm and pin end measures 0.80 mm.

SBT200.00
$7.95




Pin-End Replacement tips for SBT200.00

SBT200.05
$1.40





Forked End Replacement tips for SBT200.00

SBT200.10
$1.30






Japanese Style Spring Bar Tool

This popular model is called "Japanese" style because it originated in Japan and features a special shaped fork tip. Many people prefer this shape for getting under straps and bands. Anodized aluminum body with hardened tool steel double-ended tip. Forked end measures 1.60 mm and pin end measures 0.70 mm.

SBT205.00
$9.95




Reversible Replacement Tip for SBT205.00

Reversible replacement tip for SBT205.00. Forked end measures approximately 1.6 mm and pin end measures 0.70 mm.

SBT205.01
$2.50






ISO Swiss Watch Band Lug Size Gauge, Blue

Size the watch case lug or the watch band with this tool. Length: 85 mm. Graduations: 7 to 24 mm and 5/16" to 3/4". Equipped with a small fork to remove/install some spring bars. Blue in color.

FB-ISO-BLUEGAUGE
$3.95





ISO Swiss Watch Band Lug Size Gauge, Green

Size the watch case lug or the watch band with this tool. Length: 85 mm. Graduations: 7 to 24 mm and 5/16" to 3/4". Equipped with a small fork to remove/install some spring bars. Green in color.

FB-ISO-GREENGAUGE
$3.95





ISO Swiss Watch Band Lug Size Gauge, Yellow

Size the watch case lug or the watch band with this tool. Length: 85 mm. Graduations: 7 to 24 mm and 5/16" to 3/4". Equipped with a small fork to remove/install some spring bars. Yellow in color.

FB-ISO-YELLOWGAUGE
$3.95





101 Spring Bars Assorted Sizes & Types

Great Assortment of 101 Spring Bars for only four dollars and ninety five cents! This assortment contains a mixture of different, types, thickness, and sizes which will allow you to get started replacing spring bars right away without making a big investment.

SB-ASST-BULK101
$4.95
