Watch Case Styles #'s 4 & 5 for ETA 2824-2 & 2836-2

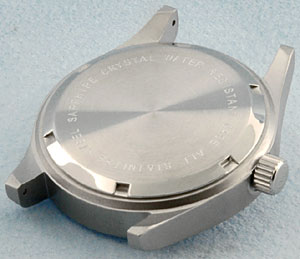

Case Style #4 with Mineral Glass Designed to Fit ETA 2824-2

100% Stainless Steel Case
Made To Fit ETA 2824-2 Movements

Fantastic 3ATM water-resistant, 100 percent stainless steel sand blasted brushed finished case with super strong 28.5 mm x 1.3 mm thick mineral glass crystal. Crystal gasket size Height 1.2mm Inner Diameter 28.5 x Outer Diameter 29.3 mm. Case diameter is 35.3 mm, case height is 9.82 mm, crown diameter is 5.5 mm with case tube diameter of 2.5 mm, and watch band lug size is 18 mm. This is the original Case style #4 made for the ETA 2824-2 without a screwdown crown. The original case style #4 can be used to case watches with ETA 2804-2 and 2801-2 movements and is also suitable for 11 1/2 Ligne Quartz Movements. Choose from the dials we have, which can be used for ETA 2804-2 and ETA 2824-2. This case can use dials diameter 28.0 to 28.7 mm. Dial opening is 26 mm


Screw Back 3 ATM Water-Resistant Case .

FB-CASE4
$39.00

order.gif  checkout.gif
Quantity   1 - 2     3 - 9     10+
Price $39.00 $35.50 $31.80



Case Style #4 with Mineral Glass and Screwdown Crown Designed to Fit ETA 2824-2

100% Stainless Steel Case
Made To Fit ETA 2824-2 Movements
With Screwdown Crown

Fantastic 3ATM water-resistant, 100 percent stainless steel sand blasted brushed finished case with super strong 28.5 mm x 1.3 mm thick mineral glass crystal and screwdown crown. Crystal gasket size Height 1.2mm Inner Diameter 28.5 x Outer Diameter 29.3 mm. Case diameter is 35.3 mm, case height is 9.82 mm, crown diameter is 5.5 mm, and watch band lug size is 18 mm. Choose from the dials we have, which can be used for ETA 2804-2 and ETA 2824-2. This case can use dials diameter 28.0 to 28.7 mm. Dial opening is 26 mm.

FB-CASE4SD
$46.00

order.gif  checkout.gif
Quantity   1 - 2     3 - 9     10 - 24     25+
Price $46.00 $42.00 $38.20 $34.10



Case Style #4 Sapphire Glass Crystal and Screwdown Crown Re-designed now fits ETA 2836-2 & ETA 2824-2

Case back was re-designed to allow the ETA 2836-2 to fit.
100% Stainless Steel Case
Made To Fit ETA Movements, 2824-2 and 2836-2
Comes With Screwdown Crown


SCREWDOWN CROWN CASE with Screw Back Water-Resistant 3 ATM Case.

Fantastic 3ATM water-resistant, 100 percent stainless steel sand blasted brushed finished case with super strong 28.5 mm x 1.3 mm thick sapphire glass crystal and screwdown crown. Crystal gasket size Height 1.2mm Inner Diameter 28.5 x Outer Diameter 29.3 mm. Case diameter is 35.3 mm, case height is 10.15 mm, crown diameter is 5.5 mm, and watch band lug size is 18 mm. Choose from the 28.5 dials we have, which can be used for 2804-2, 2824-2 and 2836-2. This case can use dials diameter 28.0 to 28.7 mm. Dial opening is 26 mm SAPPHIRE GLASS MODEL WITH SCREWDOWN CROWN
Screw Back Water-Resistant 3 ATM Case.

FB-CASE4SASD
$59.00

order.gif  checkout.gif



Case Style #5 with Screwdown Crown, Mineral Glass Top and Bottom Case Re-Designed to Fit ETA 2836-2 & 2824-2

100% Stainless Steel Case
Made To Fit ETA 2836-2 Movements along with ETA 2836-2

Fantastic 3ATM water-resistant, 100 percent stainless steel sanded finished case body with super strong 28.5 mm x 1.3 mm thick mineral glass crystal on top. Top crystal gasket size Height 1.2mm Inner Diameter 28.5 x Outer Diameter 29.3 mm. The see-thru mineral glass back has a high polish finish. Case diameter is 35.3 mm, case height is 10.35 mm, crown diameter is 5.5 mm, and watch band lug size is 18 mm. Choose from the dials we have, which can be used for ETA 2804-2 and ETA 2824-2. This case can use dials diameter 28.0 to 28.7 mm. Dial opening is 26 mm


Case Style #5 with an ETA 2824-2 inside.


Case Style #5 can also be fitted with an ETA 2801-2.

FB-CASE5-SDC
$49.60





Case Style #5 with Screwdown Crown, Sapphire Glass Top and Bottom Case Re-Designed to Fit ETA 2836-2 & 2824-2

100% Stainless Steel Case
Made To Fit ETA 2836-2 Movements along with ETA 2836-2

Fantastic 3ATM water-resistant, 100 percent stainless steel sanded finished case body with super strong 28.5 mm x 1.3 mm thick sapphire glass crystal on top. Top crystal gasket size Height 1.2mm Inner Diameter 28.5 x Outer Diameter 29.3 mm. The see-thru sapphire glass back has a high polish finish. Case diameter is 35.3 mm, case height is 10.35 mm, crown diameter is 5.5 mm, and watch band lug size is 18 mm. Choose from the dials we have, which can be used for ETA 2804-2 and ETA 2824-2. This case can use dials diameter 28.0 to 28.7 mm. Dial opening is 26 mm


Case Style #5 with an ETA 2824-2 inside.


Case Style #5 can also be fitted with an ETA 2801-2.

FB-CASE5-SASDC
$68.00





Dials to Fit Case Styles 1, 2, 4, 5 & 6
These Dials Fit ETA 2801, 2824 & 2836



Hands, Watches



Dials for Watches and American Pocket Watches

Sometimes people call them Watch Faces
While, the watch industry's name for them is just Dial.
