AWCI Introduction to Basic Watch Repair Tool List

Hand remover for wrist watches, tips will not demage the dial. Hands, cannon pinions, sweep wheels and chronograph driving wheel remover. Bergeon reference #30636-1

FB-400
$69.72


Set of Mainspring Winders for left and right hand mainsprings. Set contains 7 drums size 0 (5.6 mm dia.) to size 6 (9.8 mm), 7 each right and left hand arbors, two handles, one right and one left.

BERG-5355
$820.00


This is the finest oil cup stand on the market and is a must have item for any watchmaker. Only a little bit of oil should be placed in each of the agate cups at a time. Oil should be transferred to the cups by large drops from a large oiler or a clean nail. In the center of the stand is pith wood cup for cleaning the oilers. Comes with 4 ruby cups (8mm well).

FB-914
$164.75

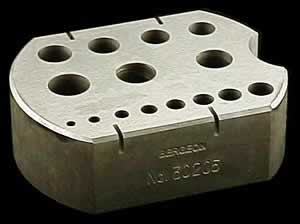

Used as a base for staking, riveting and drilling small parts; great for watchmakers and jewelers, but not limited to. 15 holes 2.0 mm to 8.60 mm holes. Size: 65 x 45 x 20 mm

FB-2825
$109.00


This pliers-type cannon-pinion tightener is one quick way to increase friction on the center wheel pinion. With screw regulated opening system.

FB-713
$159.00


Bergeon high-quality, Swiss made of nickeled polished brass. Screw type. Diameter 23 mm. Height 13 mm.

FB-312
$41.65


Quantity	1 - 2	3 - 5	6 - 11	12+
Price	$41.65	$38.50	$37.35	$36.41

This Double lens Bergeon aplanatic, 10X eye loupe, has good color correction and less distortion compared to the B&L 10X. As in all 10x loupe of this type the focus distance is one inch away from the object. 10x Power loupes are only used for inspection of an object. This loupe has a 1 stamped on it meaning 1" focus meaning 10x power.

FB-610
$46.80


This Bergeon 5430 set of two hairspring collet tools is useful for rotating the collet on the balance staff, as well as a variety of other tasks. This is a useful set and is a recommended tool for the AWCI course Basic Watch Repair as levers for hands.

FB-773
$75.24


Rodico brand cleaning putty is something the watchmaker should never run out of. In addition to it's ability to clean small parts, it is useful for wiping bridges and plates of excess oil, dust, and debris, and for 1,000 other uses: holding parts, fishing lost parts out of crevices, standing things up, and lying them down. Rodico is as an excellent cleaning material and is as useful as your imagination. This is a package of two bars.

FB-309
$11.89


Attention All Watchmakers! Bergeon has launched one of the most comfortable screwdriver set to date. It has everything the FB-1200 offer and more. Simply put, this is the best of the best. So why not treat yourself with this wonderful 10 piece screwdriver set. The New Bergeon Ergonomic Screwdriver Set combines both technical quality and comfort of use. The screwdrivers are provided with an elastomer membrane (rubber-like-feel) handle, which assures an ideal contact between the tool and the hand. Sizes of screwdrivers are .50 mm, .60 mm, .80 mm, 1.00 mm, 1.20 mm, 1.40 mm, 1.60 mm, 2.00 mm, 2.50 mm, and 3.00 mm. Also comes with replacement stainless steel blades for all screwdrivers.

BERG-6899-S10
$316.25


For those who don't want to scratch and damage their dials while removing hands, this Bergeon dial protector is the tool to use. It's made of resistant synthetic material. Thickness of 0.15 mm. Color is off white with Otto Frei Logo.

BERG-6938
$1.50


Quantity	1 - 9	10 - 99	100+
Price	$1.50	$1.20	$1.00
On Sale!	$1.30	$1.08	$0.91

Set of three new double ended hand setting tools, Bergeon Swiss made. Contains 7404-1 (0.50 mm x 1.0 mm), 7404-2 (0.80 mm x 1.50 mm) and 7404-3 (center pointing x flat tip).

BERG-7404
$61.32


Slide locking jaws, with chrom.-plated bow and handle. Length: 120 mm.

BERG-30610-1.00
$64.80


Slide locking jaws, with chrom.-plated bow and handle. Length: 120 mm.

BERG-30610-15
$64.80


Slide locking jaws, with chrom.-plated bow and handle. Length: 120 mm.

BERG-30610-2.50
$64.80


Small. Name of the wood : Hornbeam, Scientific name : Carpinus betulus, Country of Harvest : France

123.302
$8.90


Fine White Leather Buff Stick, only 6 millimeters wide great for reaching spots a wider buff can't handle.

BERG-1282-6
$10.45


This inexpensive plastic dust cover and tray may look like a cheese tray, but for the watchmaker, it means clean parts. The segmented bottom separates groups of parts. You can also flip the base and use it as a display tray, the lid will fit nicely.

FB-117
$8.60


Some think this is the best set on the market, without a Bergeon name plate on it. These 12 screwdrivers have a newly redesigned stainless steel body with anodized aluminum Swivel Head that sits a top of and canal of Micro Ball Bearings allowing for a very smooth swivel rotation. Comes with 12 spare blades, which can be stored under the center cap of the rotating stand. The rotating stand weighs about 1 1/2 pounds, which is heavier and wider than the conventional rotating stand. The heavy weight and wide stance of the stand helps stabilize the screwdriver set, so that the set won't knock over as easily as other conventional screwdriver sets on rotating stands. The color coded holes help identify your screwdrivers faster. Sizes of screwdrivers are 0.50 mm, 0.60 mm, 0.70 mm, 0.80 mm, 1.00 mm, 1.20 mm, 1.40 mm, 1.50 mm, 1.60 mm, 2.00 mm, 2.50 mm, and 3.00 mm. Non-skid base.

MSA 01.218-E
$399.95


Hand fitting press for wrist and pocket watches. Delivered with 8 different nylon screw on stakes stored on the press, spring-loaded for easy use. Equipped with plunger, spring, and screw on stake sizes: 0.50mm, 0.70mm, 0.90mm, 1.20mm, 1.50mm, 1.70, flat, and conical. Stakes are the same ones used in MSA05.017. Product size: 70mm x 70mm x 105mm.

MSA05.021
$118.00


Lint-free, anti-tarnish tissue paper, 1,000 5 inch by 5 inch sheets per box. Every watchmaker and Jeweler needs a box of these papers to keep clean parts, rings and other small items. Made in America, this is a superior product to the cheap watch paper made in India found elsewhere on the web.

FB-308
$8.50


This special synthetic gease is recommended for pallets and escapements. Moebius 9415 is considered all purpose, since it can be used with all watch and clock pallets. The recommend shelf life of this product is 6 years.

FB-931
$32.90


If you don't have a bottle of D-5 yet, then now is a good time to order some. D-5 is a highly recomended thick oil which can be used on both mechanical and quartz movement. The recommend shelf life of this product is 3 years. Modern ETA oil charts advise you to use when need a thick oil or grease either D5 or the New Moebius 9104 Synthetic Oil Synt-HP 1300.

FB-916
$39.60


Moebius Synthetic Oil 9010 has been the standard general purpose oil in the watch industry for decades. Extremely resistant to deterioration, it does not thicken, or clog and it prevents gumming up. MOEBIUS 9010 Synt-A-Lube does not spread, and remains where it is applied for several years. Viscosity of 1.5 stokes at +20 degrees celsius ((viscosity 120 (mm2/sec), provides good lubrication until -29 degrees celsius. Range of temperature: -29 to +70 °C, Viscosity at 20 °C: 150 cSt Pour point: -40 °C, Density at 20 °C: 0,907. Moebius declares the 9010 product in conformity with ROHS and REACH initiatives. The recommend shelf life of this product is 6 years.

FB-917
Moebius Synt-A-Lube (9010) Watch Oil, 2 ml
$27.60


Quantity	1 - 11	12+
Price	$27.60	$25.79

Moebius Synthetic Oil 9020 is a high viscosity oil with a rating of 2.7 stokes at +20 degrees celsius while remaining in position longer than lower viscosity oil. Remains fluid until -18 degrees celsius, however at low temperatures it proforms well, when its use is limited to slow moving parts. Great for the oscillating weights and other moving components of automatic watches. Can also be used on the pivots of center wheels and barrel arbors. The recommend shelf life of this product is 6 years. Technical details: Viscosity at 20 °C: 270 cSt, Pour point: -40 °C, Density at 20 °C: 0,920, Range of temperature: -18 bis +80 °C

FB-919
$28.90



This is the best spring bar tool on the market. Max Sussman, who gave me a sample many years ago (1984-85?), discovered it when first introduced in Switzerland. I did not think much of it at first, and it spent about a year in my desk. One day a customer came in and wanted help removing bars from a Seiko Divers Watch. We tried everything, even using two tools at once with four hands and then I remembered that this tool was in my desk. Within seconds we had the spring bars removed and I have never used another tool since. It took me about three years to convince Bergeon to start selling this tool, while the guy from India was ready to copy it the first time I showed him the tool. It comes with one tip that is reversible: a small fork on one end and a pin pusher on the other. The other tip is a large fork, which is the most useful end for removing spring bars quickly on leather straps and is the end which will remove the bars on Seiko rubber divers bands. The small fork is for grabbing spring bars for the backside of metal bands. Bergeon is not the Swiss maker of this tool, however Bergeon sells this item by the number 6111. There is no doubt among the users of the First-Quality Spring Bar Tool that it is the best spring bar tool to buy. I have been using spring bars tools for over 40 years now and no other tool is even worthy of your consideration. Do not be fooled by the claims of those who simply never used this tool. Here are some comments of real users: "The small fork is exactly the same size on the FB-504 (6111) as the AF17.450/BERG-6767-F, which measures 1.20 mm; the pin is exactly the same size on each. The advantage of the FB-504 and (6111) is that you can get the larger spade fork in addition to the pin & small fork tips. I don't believe it's an option for the other model. The FB-504 (6111) tips are double-ended, with a pin on one end and a fork on the other, which may help you decide. The collets lock the tip in place, while the other tool's tips screw in. I have both, by the way. I use the FB-504 (6111) 99% of the time. Sometimes you need to use two at the same time, which is why I have another." Another person writes, "I've owned the 6111 (FB-504) for years and love it, I've currently got the small fork on one end and the small pin on the other, it's a very useful tool. The large fork is useful for pushing straps out of the way in order to get to the spring bar flanges." "Watchmakers Tip" when faced with a design that requires both end of the spring bars tip to be removed at the same time. Simply remove one end first and block the tip from going back into the hole with a piece of paper and then proceed to remove the tip on the out side so you can now remove the bracelet.

FB-504
$29.95



Set of Mainspring Winders for left and right hand mainsprings. Set contains 17 drums size 00 (5.3 mm dia.) to size 15 (19 mm), 17 each right and left hand arbors, two handles, one right and one left. Supplied in new travel storage case.

BERG-5356
$1778.40, On Sale $1689.00


For those who don't want to scratch and damage their dials while removing hands, this dial protector is the tool to use.

MSA 70.004
$1.50


Quantity	1 - 9	10 - 99	100+
Price	$1.50	$1.20	$1.00
On Sale!	$1.38	$1.08	$0.91

This reversible movement holder for 8 3/4 to 19 ligne movements is the Bergeon, Swiss-made classic. Bergeon has improved on the design of the popular 4040 movement holder. Using hardened plastic instead of steel, this eliminates potential scratching of the movement. Holds movements from 19.75 mm to 42.85 mm.

FB-807-P
$25.32


Safely and easily removes fingerprints and smudges from all glass and plastic crystals.

Crystal Clean
$9.50


When checking details only a 10 power loupe will do. You know the rule, it is considered perfect if you do not see any flaws at 10 power. The 10 power loupe comes in focus at 1 inch.

FB-602
$18.95


For use on cannon pinions and for larger pocket watch and small clock hands. Hands, cannon pinions, sweep wheels and chronograph driving wheel remover. Bergeon reference #30637-2

FB-401
$74.64


Made for larger hands on both mechanical movements and chronograph quartz watches. Double sided, on one end the diameter of the hole is 0.80 mm and the other end is 1.50 mm. This tool is a lifesaver and a timesaver and will also help with hole sizes smaller and larger than the listed sizes.

BERG-7404-2
$20.90, Now on Sale $17.95


Quantity	1 - 9	10+
Price	$20.90	$18.95
On Sale!	$17.95	$15.98

Double sided, on one end is blue pvc with center pointing and flat tip made in brass on the other end.

BERG-7404-3
$20.90


Accomodates movements between 3 3/4 and 11 lignes. Holds movements from 8.46 mm to 24.80 mm. Made with hardened plastic to eliminate potential scratching of the movement.

FB-808-P
$25.32


The Bausch and Lomb 4X loupe is the standard of the industry. Due the slightly wider field of view, objects appear a little brighter with the B&L loupe than with a Bergeon Aplanatic Loupe. The 4X power loupe comes in focus at 2.5 inches allowing for you to have the working room to need to repair movements.

FB-603
$16.95


For removing wheels on third wheel arbors and for chronograph driving wheels with five spokes. Hands, cannon pinions, sweep wheels and chronograph driving wheel remover. Bergeon reference #30638-3 Bergeon is out of stock at this time. Bergeon Estimates Availability April 2024.

FB-402
$74.64


Remover for wheels on third wheel spindles and for chronograph driving wheels with six spokes. Hands, cannon pinions, sweep wheels and chronograph driving wheel remover. Bergeon reference #4079-3A

FB-403
$102.00


Bergeon reference #30669-4 for alarm clocks, timers and other instruments, strong tool with four different spokes, diameters of 0.70, 0.90, 1.20 and 1.50 millimeters. Hands, cannon pinions, sweep wheels and chronograph driving wheel remover. Bergeon reference #30669-4

FB-404
$102.00


Second hand remover, excellent for curved countersink dials. Some think that this tool should be used on the small hour and minute hands of today's fine watches. Everyone should have this Presto # 6 model and Presto # 1 to begin with. Hands, cannon pinions, sweep wheels and chronograph driving wheel remover. Bergeon reference #30670-6

FB-405
$74.30 On Sale $63.95


Hand remover that removes hands without touching the dial. Great for curved dials, stop watches, movements without dials. Four different spokes with diameters of 0.40, 0.65, 0.90 and 1.15 millimeters. Hands, cannon pinions, sweep wheels and chronograph driving wheel remover. Bergeon reference #30671-7

FB-406
$86.00
