Oscillating Weight Bolt Tool



Bergeon 7923 Oscillating Weight Bolt Tool

Press to release and lock the bolt of oscillating weights. Sturdy, stable, precise and easy to use. Releasing the bolt of the oscillating tool will be a piece of cake when using this tool. For calibers ETA 2891, 2892, 2893, 2894, 2895, 7750, and 2000/1.

To release the bolt, simply set the notches "B" in the corresponding slots while pushing vertical on the tool Fig.1. Maintain the oscillating weight and turn the tool 1/4 of a round Fig.2. Then release the bolt Fig.3.

Special Order Item. Please allow 4-6 weeks for delivery.

BERG-7923
$489.00





Horotec Oscillating Weight Bolt Tool With Two Different Keys

This Horotec tool comes with two quick change keys and one handle. Open Oscillating weight bolts now for the ETA 7750 and ETA 2000-1 series as well as the ETA 2892-2893-2894-2895 movements. Many Omega movement models are based on these ETA calibers and they also used the same two size keys.

MSA-03.675
$102.95





Horotec Multi-Purpose Tool

The tool comes with 17 interchangeable keys for screw-on pushers or tubes, oscillating weight bolt and battery cover. It can be use on Rolex®, Breitling, Omega and Swatch movements. The kit features 17 keys, the master handle and a weighted storage base to keep all of the items organized and accessible.

These tool bits are for Horotec Generic Rolex® Tubes: MSA-03.620-01 diameter 1.50 mm works on MSA-65.001 screw on tube , MSA-03.620-02 diameter 1.80 mm works for MSA-65.002 screw on tube, MSA-03.620-03 diameter 2.65 mm works for MSA-65.003 screw on tube, MSA-03.620-04 tube diameter 2.75 works for MSA-65.004 screw on tube, MSA-03.620-05 tube diameter 2.95 mm works for MSA-65.005 screw on tube, MSA-03.620-06 diameter 3.00 mm works for MSA-65.006 screw on tube, MSA-03.620-07 diameter 3.00 mm works for MSA-65.007 screw on tube. The Horotec Generic Rolex® tubes can be found on page 73 of the Horotec 2005 Watch Parts Service Catalog.

These tool bits are for some Horotec Pushers: MSA-03.620-203 works on Pushers MSA-61.203 and MSA-61.703, MSA-03.620-207 works on Pushers MSA-61.207 and MSA 61.707.
The MSA-03.620-P3, MSA-03.620-P27, and MSA-03.620-P39 are the same as the Bergeon 5901-P3, 5901-P27 and 5901-P39, which is mostly used on Omega pushers.

These tool bits are used on the Oscillating Weight Bolts of the ETA 2892 and Val. 7750: MSA-03.620-2892 works on the ETA 2892 and MSA-03.620-7750 works on the Val. 7750.

The MSA-03.620-GENT, MSA-03.620-LADY, and MSA-03.620-MED tool bits are used to open the cell hatches of Gents, Ladies and Medium Swatch watches.

MSA 03.621
$286.00





Horotec Oscillating Weight Bolt Bit for VAL/ETA 7750

Bit fits the MSA 03.675 Oscillating Weight Bolt Tool and MSA 03.621 Multi-Purpose Tool. For VAL/ETA 7750, 7751, 775, and ETA 2000-1

MSA 03.620-7750
$36.95





Horotec Oscillating Weight Bolt Bit for ETA 2892

Bit fits the MSA 03.675 Oscillating Weight Bolt Tool and MSA 03.621 Multi-Purpose Tool. For ETA 2892, 289, 2894, and 2895

MSA 03.620-2892
$36.95

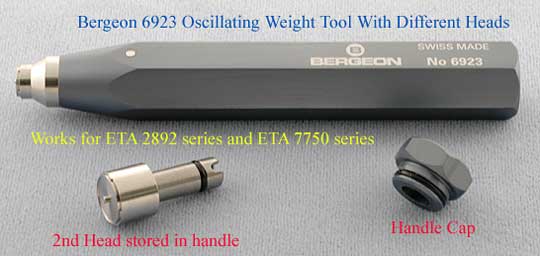

Bergeon 6923 Oscillating Weight Bolt Tool With Two Different Keys

This is the latest oscillating weight bolt tool that Bergeon developed. Bergeon took the idea of Horotec's design and made it better by allowing the user to store the second key inside the tool for convenience. Made with Swiss anodized aluminum handle and two stainless steel heads. Head #1 is 10.3mm diameter and Head #2 is 7mm diameter. Open Oscillating weight bolts now for the ETA 7750-7770 and ETA 2000-1 series as well as the ETA 2892-2893-2894-2895-2896-2897 movements. Many Omega movement models are based on these ETA calibers and they also used the same two size keys.

BERG-6923
$169.00





Oscillating Weight Holder for Removing/Installing Weight Bolt for VAL/ETA 7750

Holder used to hold the oscillating weight in place when removing or installing the weight bolt. For Val/ETA 7700, 7750, A07.111, A07.161, A07.271.

MSA 03.680-7750
$68.95





Oscillating Weight Holder for Removing/Installing Weight Bolt for ETA 2892

Holder used to hold the oscillating weight in place when removing or installing the weight bolt. For ETA 2892, 2893, 2894, 2895, 2896, 2897

MSA 03.680-2892
$68.95





Horotec Assortments of 4 Oscillating Weight Axle Punches

Assortment of 4 punchers for riveting oscillating weight axles. Use for Rolex Caliber #1570, 2135, 2235, and 3035/3135.

MSA-03.666
$98.00




Horotec Individual 1570 Oscillating Weight Axle Punch

Use for Rolex Caliber #1570.

FB-ROL-1570
$27.00





Horotec Individual 2135 Oscillating Weight Axle Punch

Use for Rolex Caliber #2135.

FB-ROL-2135
$27.00





Horotec Individual 2235 Oscillating Weight Axle Punch

Use for Rolex Caliber #2235.

FB-ROL-2235
$27.00





Horotec Individual 3035 Oscillating Weight Axle Punch

Use for Rolex Caliber #3035, 3135.

FB-ROL-3035
$27.00






Oscillating Weight Bolt Tool for Rol 3235

Use for Rolex 3235.

MSA 03.017
$62.95
