Case Tubes & Pusher Tools for Watches

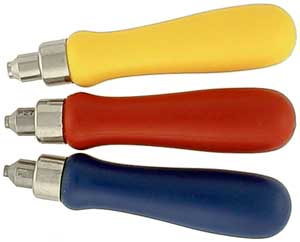

Bergeon 5901-P03, Tool for Screwing in Tubes

Tools for screwing tubes of chronograph pushers.
Sold Individually, available in three sizes.


#5901-P03 for 3.33 mm tubes.

5901-P03
$57.50




Bergeon 5901-P27, Tool for Screwing in Tubes

Tools for screwing tubes of chronograph pushers.
#5901-P27 for 3.65 mm tubes.

5901-P27
$57.50





Bergeon 5901-P39, Tool for Screwing in Tubes

Tools for screwing tubes of chronograph pushers.
#5901-P39 for 4.10 mm tubes.

5901-P39
$57.50






Bergeon 3010 Tube-Tightener Set in Wood

Bergeon tool for tightening crown, case and hand tubes. This is the correct way to tighten any tubes between 0.40 to 2.60 millimeters.

In wooden case. With 18 interchangeable collets and 1 lever. The pipes are tightened evenly over their entire circumference. This ensures that they fit firmly and evenly on the hand arbor or crown.

FB-715
$579.95





Bergeon 6160 Pliers For Removing Pushers On Watch Cases

Pliers for removing pushers and correctors of watch cases, supplied with 3 punches. In cast aluminium with adjustable stoppers. Measures 145 mm in length.


Replacement punches available.

BERG-6160
$145.00





Replacement Pusher Punch 5 mm For Bergeon 6160 Pusher Removing Pliers Bergeon 6160

Replacement punch 5 mm.

BERG-6160-D
$9.15





Replacement Pusher Punch 8 mm For Bergeon 6160 Pusher Removing Pliers Bergeon 6160

Replacement punch 8 mm.

BERG-6160-E
$9.15





Replacement Pusher Punch 12 mm For Bergeon 6160 Pusher Removing Pliers Bergeon 6160

Replacement punch 12 mm.

BERG-6160-F
$9.15





Bergeon 6161

Pliers for fitting pushers and correctors of watch cases, supplied with 2 punches: 1.9 mm and 2.4 mm. In cast aluminium. With adjustable stoppers. Measures 145 mm in length.


Replacement punches available.

BERG-6161
$117.50





Original Tube Fitting Set 3C-964A

These fit the original milled case tubes for the 5.30 mm and the 6.00 mm crowns. The original milled tubes the grooves were are the bottom of the tube.

3C-964A
$99.00





Tube Fitting Tool Set 3C-964

This set of wrenches can remove or install the new type case tubes which fit the 5.30 mm and the 6.00 mm crowns. The new type tubes, have the milled grooves inside on the upper or widest part of the tube.

3C-964
$69.00





MSA Chronograph Button Tool

Tool for assembling/disassembling screw-on pushers and tubes. Interior diameter: 3.10 mm.

This tool will set and remove most standard 4.0 mm outside diameter chronograph buttons, which have tubes with thread size 3.00 which is a size not available from Bergeon.

MSA03.655
$42.70





Horotec Multi-Purpose Tool

The tool comes with 17 interchangeable keys for screw-on pushers or tubes, oscillating weight bolt and battery cover. It can be use on Rolex®, Breitling, Omega and Swatch movements. The kit features 17 keys, the master handle and a weighted storage base to keep all of the items organized and accessible.

These tool bits are for Horotec Generic Rolex® Tubes: MSA-03.620-01 diameter 1.50 mm works on MSA-65.001 screw on tube , MSA-03.620-02 diameter 1.80 mm works for MSA-65.002 screw on tube, MSA-03.620-03 diameter 2.65 mm works for MSA-65.003 screw on tube, MSA-03.620-04 tube diameter 2.75 works for MSA-65.004 screw on tube, MSA-03.620-05 tube diameter 2.95 mm works for MSA-65.005 screw on tube, MSA-03.620-06 diameter 3.00 mm works for MSA-65.006 screw on tube, MSA-03.620-07 diameter 3.00 mm works for MSA-65.007 screw on tube. The Horotec Generic Rolex® tubes can be found on page 73 of the Horotec 2005 Watch Parts Service Catalog.

These tool bits are for some Horotec Pushers: MSA-03.620-203 works on Pushers MSA-61.203 and MSA-61.703, MSA-03.620-207 works on Pushers MSA-61.207 and MSA 61.707.
The MSA-03.620-P3, MSA-03.620-P27, and MSA-03.620-P39 are the same as the Bergeon 5901-P3, 5901-P27 and 5901-P39, which is mostly used on Omega pushers.

These tool bits are used on the Oscillating Weight Bolts of the ETA 2892 and Val. 7750: MSA-03.620-2892 works on the ETA 2892 and MSA-03.620-7750 works on the Val. 7750.

The MSA-03.620-GENT, MSA-03.620-LADY, and MSA-03.620-MED tool bits are used to open the cell hatches of Gents, Ladies and Medium Swatch watches.

MSA 03.621
$286.00





Horotec Tool for Removing Pushers

Similar to the MSA03.656, but only removes pushers, NOT for fitting pushers. Delivered with 7 stakes (exterior diameters are 2.95mm, 2.65mm, 2.45mm, 2.15mm, 1.95mm, 1.75mm, and 1.55mm) and 1 MSA03.654-H Delrin unfitting support die. The dimensions for this tool is 45x60x7.8 MM.

MSA03.654
$109.00





Horotec Tool for Fitting and Removing Pushers

It isn't always easy to drive out the pushers without damaging the piece. But with this Horotec Pushers-Press, fitting and removing press-in pushers will be a snap. You can now get the job done of fitting and removing quickly and safely using the right diameter pusher punch bits. Equipped with 7 pusher punch bits and 3 delrin support dies.

Here are the stock number and diameter of the pusher punch bits:
03.654-A with exterior diameter of 2.95mm and interior diameter of 1.55mm
03.654-B with exterior diameter of 2.65mm and interior diameter of 1.55mm
03.654-C with exterior diameter of 2.45mm and interior diameter of 1.55mm
03.654-D with exterior diameter of 2.15mm and interior diameter of 1.55mm
03.654-E with exterior diameter of 1.95mm and interior diameter of 1.45mm
03.654-F with exterior diameter of 1.75mm and interior diameter of 1.25mm
03.654-G with exterior diameter of 1.55mm and interior diameter of 1.05mm
03.654-H is the unfitting support die that is made of delrin material.
03.656-A is the lower fitting support die.
03.656-B is the upper fitting support die.

MSA03.657
$174.95





Click Here for Replacement Pusher Punch Bits & Support for MSA03.654 & 03.656

Individual replacement parts for MSA03.654 & 03.656: MSA03.654-A, MSA03.654-B, MSA03.654-C, MSA03.654-D, MSA03.654-E, MSA03.654-F, MSA03.654-G, and MSA03.654-H.
