Timing & Watch Testing Machines

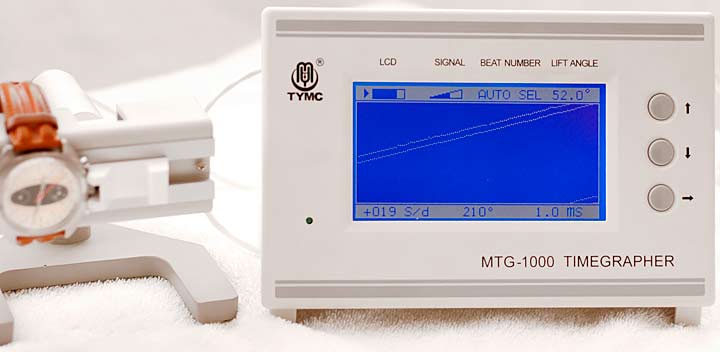

The New & Improved Otto Frei Multifunction Timegrapher Watch Timing Machine No. 1000

Test and displays Amplitude, along with displaying on the LCD screen the beat noise, rate in seconds per day is displayed as either fast or slow and the beat error in "ms" milli-seconds is also tested. Automatically discovers 9 different beat rates 12,000 14,400, 18,000, 19800, 21600, 25200, 28800, 36000 and 43,200 bph. Those 9 beat rates are automatically identified by this tester in just a few seconds or you can change and manually set the beat rate to be tested. This new improved 1000 Timer can test 56 different beat rates from super slow 3,600 BPH to ultra fast 43,200 BPH by manually selecting the rate. The lift angle is pre-set to default value of 52 degrees. If you know the correct lift angle of the watch you are testing you can manually set the correct lift angle to get the most accurate Amplitude measurement possible. Uses the standard microphone rotates to six different positions and opens to 50 mm wide. The power supply is single phase AC110V-250V, power consumption is about 8 watts.
Displays daily rate in seconds per day (+/-300 s/d), Accurate to (+/-1 s/d).
Amplitude: 100 - 350 degree, allowable tolerance (+/-3 degree).
Beat error: 0-4.0ms, allowable tolerance (+/-0.1ms).
Life angle: 30-60 degree, ex-works value: 52 degree.
While testing using the tester, you can hear the sound of the beat noise from a built in speaker, you can turn on and off the sound as you wish.

Now it is possible to own a timer that test for Amplitude for less than $250 dollars!

Amplitude reading is taken with the watch in the horizontal position (dial up or dial down) a good amplitude reading would be in the 275 to 315 range. While it is not necessary to know the correct lift angle of the balance to get an accurate timing reading to get an accurate Amplitude reading you do have to set the machine to the correct lift angle of the balance of the movement being tested for Amplitude.

OF-1000-TIMER
$249.00





$1,200.00 $929.95 On Sale!
TYMC Watch Tester MTG-4000A

The MTG-4000A is an improved version of the MTG-3000. The MTG-4000A has a color LCD Graphic Display and comes with the Improved Microphone that opens to 50 mm and rotates for testing in six different positions. The 6 position test is programmable to set the testing time in each position anywhere from 10 to 50 seconds. If a print out of the timing results are needed and optional TYMC Printer which is sold separately (see below on the page) is available. The TYMC Timers can test six different beat rates from (18000, 19800, 21600, 25200, 28800, 36000 BPH) of mechanical watches. Most watches made since 1920 beat at one of these BPH. Before Edward Howard created the first 18,000 BPH watch in the 1880s most watches beat at 14,400 BHP. Once Howard introduced the 18,000 BPH watch almost all watch companies started making 18,000 BPH watches. However for a period of time most companies produced some models in both 14,400 BPH and 18,000 BPH versions. If you have some early American Pocket Watches from the 1850s to 1920s it is very likely the beat rate is below 18,000 BPH and will not test on the TYMC timers.

There are two display usages: horizontal and vertical.
6 frequencies (18000, 19800, 21600, 25200, 28800, 36000) of mechanical watches made in everywhere can be tested.
The power supply is single phase allows from us with AC110V or 250V(+/-5%).
Display Daily rate of watch in seconds per day (+/-300 s/d), accurate to (+/-1 s/d).
Amplitude: 100 - 350 degree, allowable tolerance (+/-3 degree).
Beat error: 0-4.0ms, allowable tolerance (+/-0.1ms).
Life angle: 30-60 degree, ex-works value: 52 degree.
While testing using the TYMC tester, you can hear the sound of the beat noise from a built in speaker, you can turn the sound off by pushing the "sound" button.

All machines come factory calibrated at 18.0000 mhz. The frequency, may drift after a few years and by using a frequency meter you can recalibrate the timer to 18.0000 mhz. Frequency meter not supplied with machine.

MTG-4000
Regular Price $1200.00, Now on Sale $929.95





$1,400.00 $1,299.00 On Sale!

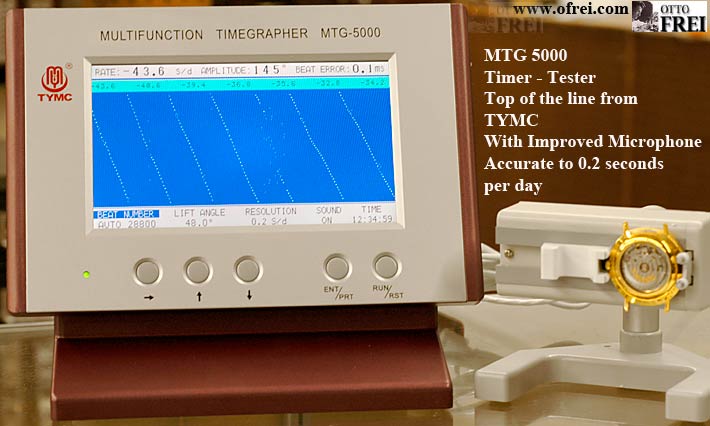

TYMC Watch Tester MTG-5000H

High definition color display.

The TYMC Timers can test six different beat rates from (18000, 19800, 21600, 25200, 28800, 36000 BPH) of mechanical watches. Most watches made since 1920 beat at one of these BPH. Before Edward Howard created the first 18,000 BPH watch in the 1880s most watches beat at 14,400 BHP. Once Howard introduced the 18,000 BPH watch almost all watch companies started making 18,000 BPH watches. However for a period of time most companies produced some models in both 14,400 BPH and 18,000 BPH versions. If you have some early American Pocket Watches from the 1850s to 1920s it is very likely the beat rate is below 18,000 BPH and will not test on the TYMC timers. All machines come factory calibrated at 18.0000 mhz. The frequency, may drift after a few years and by using a frequency meter you can recalibrate the timer to 18.0000 mhz. Frequency meter not supplied with machine.

The timegrapher MTG-5000H is used to test the performances of mechanical watches. It is a high-grade model of the MTG-H series which has higher test accuracy and more powerful functions.

There are the displays of diagrams of beat noise, the numerical values of rate, amplitudes and beats errors, adding the maximum differences of rates and amplitudes among various positions when executing programmed testing. It serves the function of long-term monitoring of rate and amplitude. 960 dots extraordinary long diagram of beat noise can be displayed on the LCD. Test with +/- 0.2 seconds per day high degree of accuracy can be carried out. There is perfect print function, the diagram and values mentioned above all can be printed by heat sensitive printer (sold separately). It serves the functions of multi-rate display, time and calendar display, acoustic stimulation of beat noise. This tester is designed as an all-in-one structure. The machine, the power adapter, and the microphone are all combined onto one chassis. The new flip-screen protects the display from scratches and dusts when not in use.

MTG-5000H
$1,299.00





Horotec Dust Cover for MTG Timing Machine Microphone

The base of the cover fits perfectly on the microphone of the MTG-1000, MTG-3000, MTG-4000, and MTG-5000. The dust cover will prevent dust and dirt from getting onto your exposed movements and watches while you are away and not testing.

MSA 19.199
$39.95





TYMC Printer For Watch Timers

This printer is for those who are required to keep or give out a printed record of the timing the watch they just serviced and timed. Most watch repair person are not required to show timing paper results while others are or like to be able to pass on the test results before and after servicing the watch.

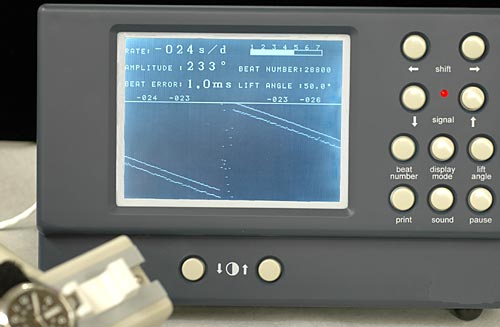

Works with the MTG-3000 (b/w display model now discontinued), the color MTG-4000 and MTG-5000 watch timers.

TYMC-PRINT
$269.00

order.gif  checkout.gif



Five Rolls of TYMC Printer Paper

TYMC-Paper
$18.80

order.gif  checkout.gif



Used Vibrograf B 200 A

Sold As Is. Fix-it or use for parts!
USED-B200A
$449.00





Vibrograf B200 & B300 Tming Machine Paper PA212

Blue tint pressure sensitive 36mm.

PA-212
$6.85

order.gif  checkout.gif
Quantity   1 - 9     10+
Price $6.85 $5.90



Tickoprint Tming Machine Paper PA70179B

Blue tint pressure sensitive 33mm.

PA-70179B
$7.95


Quantity   1      2+
Price $7.95 $6.90



Horotec Flashtest 19.108 for Quartz Watches

The HOROTEC© Flashtest is an advanced, multifunctional and portable tester for analog quartz watches and movements. This handy, precision tester performs a variety of tests with both closed and open watchcases on analog quartz watches.

The HOROTEC© Flashtest can :
1. measure battery voltage from 0 to 19.99V
2. measure battery voltage under load from 0 to 19.99V
3. measure impulses from quartz watches to determine if a problem is electronic or mechanical
4. measure the continuity of the coil
5. measure the consumption of the electronic circuit to determine whether or not it needs replacement
6. measure the consumption of the movement to determine if there is any mechanical problem indicating the need for cleaning or adjustment
7. measure the accuracy of the analogue quartz watches.

The HOROTEC© Flashtest is supplied with two precision probes, a 9V adaptor (input 220/110V AC - output 9V DC), a 9V alkaline battery, an Userís Manual and a Technical Guide, which contains the consumption and coil resistance data of the most common quartz movements.

Features a lighting LCD screen 29 x 23 mm, numbers height 15 mm.

Voltage: 110v/220v. Dimensions: 155mm x 172mm x 55mm.
Do Not use for testing mechanical watches.

MSA 19.108
$439.00





Horotec Turbo Pulse 19.110 for Quartz Watches

The electronic tester release the wheel train and test the electronic parts of quartz watches.

It determines if the coil/circuit is functioning; and also analyzes the wheel train of most quartz analog watch movements. This battery-operated tester is a pass/fail test for electronics of the movement. It also allows you to spin the hands to see if they are catching on anything as well as unjam the wheel train. Every watchmaker should have at least one of this tester. Very useful.

Voltage: 110v/220v. Dimensions: 90mm x 150mm x 30mm.
Do Not use for testing mechanical watches.

MSA 19.110
Has been discontinued by Horotec




Horotec Quartz Watch Turbo Tester 19.107

This electronic apparatus tests the mechanical side of analogic quartz watch movements (wheel train).

The Horotec Turbo Tester gives powered magnetic impulsion for turning the wheel train and watch hands of the analog quartz watches without opening the watch case.

Do Not use for testing mechanical watches.

MSA 19.107
$82.00





Horotec Quartz Watch Pulse Tester 19.106

This electronic apparatus tests the eletronic side of analogic quartz watch movements (coil/circuit).

The Horotec Pulse Tester intercepts impulsion coming from coil of the quartz movement. Light and sound comes on when a signal is picked up.

Do Not use for testing mechanical watches.

MSA 19.106
$59.00
