Movement Holders

1 ligne equals 2.256 mm

This reversible movement holder for 8 3/4 to 19 ligne movements is the Bergeon, Swiss-made classic. Bergeon has improved on the design of the popular 4040 movement holder. Using hardened plastic instead of steel, this eliminates potential scratching of the movement. Holds movements from 19.75 mm to 42.85 mm.

FB-807-P
$22.60


This reversible movement holder for 8 3/4 to 19 ligne movements is the Bergeon, Swiss-made classic. Holds movements from 19.75 mm to 42.85 mm. It's as servicable as any other and at a very good price.

FB-807
$24.95


This holder is like the FB-807, but accomodating movements between 3 3/4 and 11 lignes. Holds movements from 8.46 mm to 24.80 mm.

FB-808
$22.00


Accomodates movements between 3 3/4 and 11 lignes. Holds movements from 8.46 mm to 24.80 mm. Made with hardened plastic to eliminate potential scratching of the movement.

FB-808-P
$22.50


This is a good-quality Bergeon holder for larger movements, Tightening on Ø external from 25 to 62 mm.

FB-801
$79.98


Nickel-plated brass. Round shape. Dimension: base diameter at 31.0 mm. With 2 support screws in tempered steel, 1 at the center and 1 at 12 o’clock. 2 pushers at 2 and 4 o’clock without gasket, weak spring.

BERG-1998
$234.95


Similar to the FB-804, this holder accomodates baguette ebauches and smaller movements. The notches provide clearence for the stem.

FB-805
$37.70


This is the Bergeon high-end movement holder, adjustable for movements anywhere between 3 3/4 and 20 lignes. The jaws are reversible and one locks in position with a release lever. The versatility of this holder makes it a little more difficult to use than the simpler Bergeon holders, FB-807 and FB-808, but it's worth learning how to use.

FB-800
$84.50


Plastic reversible movement holder for the Valjoux 7750.

MSA-09.050-01
$9.50

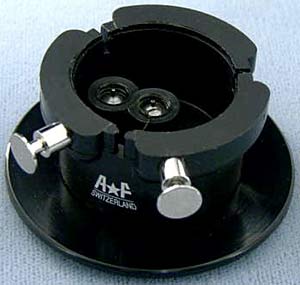

Plastic movement holder for setting hands and checking chronograph functions. For ETA 251.471. 10 1/2 ligne.

AF185.137
$36.00

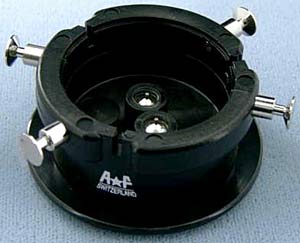

Plastic movement holder for setting hands and checking chronograph functions. For ETA 251.252, 251.262, 251.265, and 251.272. 13 1/4 ligne.

AF185.138
$45.50

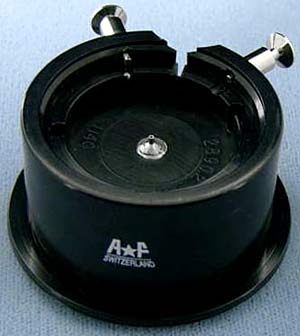

Plastic movement holder for setting hands and checking chronograph functions. Swiss Made.

AF185.140.3019
$73.00


These plastic holders are tapered, round rings for holding movements from 7 1/2 lignes to 22 1/2 lignes.

FB-809
$4.90


Movement holder with central screw for caliber 2135. Aluminium round movement holders equipped with adjustable screw to support pivots and end-pieces.

MSA-09.010-24
$21.95


Movement holder with central screw for caliber 3035. Aluminium round movement holders equipped with adjustable screw to support pivots and end-pieces.

MSA-09.010-25
$24.50


Movement holder with central screw for caliber 1570. Aluminium round movement holders equipped with adjustable screw to support pivots and end-pieces.

MSA-09.010-26
$24.50


Gauge measures in watch lignes sizes and millimeters on one side, while the other side gives American watch movement sizes. For measuring the diameter (0 to 60 mm) or the number of ligne sizes (2 to 24) of a movement. Length: 108 mm.

MOVEMENT-GAUGE
$3.95


For use on Caliber 861.

OME-5070105
$349.00
