Measuring Devices, Gauges

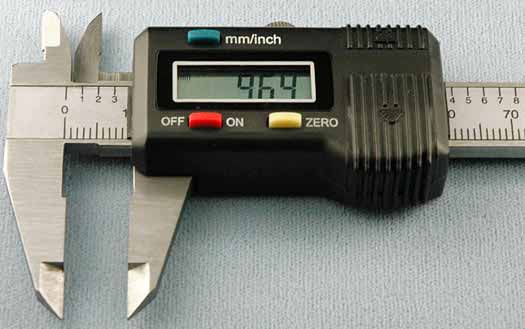

New 100 mm Watchmakers Electronic Digital Caliper

Finally an affordable three-button electronic digital 100 mm (4 inch), resolution 0.01 mm double jaw caliper within the reach of all. If you have never use a gauge like this you have been missing the speed an accurate reading that you receive with these hardened stainless jaws.


Use in either millimeter or inch mode.

FB-2412
$39.60

order.gif  checkout.gif



Electronic Digital Caliper

Electronic Digital Caliper: 6" 150mm. This quality made electronic digital caliper is our favorite tool in all our various departments, replacing other measuring tools that were not as accurate or easy to use. 0-6 inches with .001"accuracy, .0005" resolution. 0 -150 mm with .03 accuracy, .01 resolution. Zero set button, mm to inch conversion button. One year warranty. Made in China, comes with carrying case. Battery included .

FB-2400
$69.95





Electronic Digital Caliper Black 150 mm

Electronic caliper made of hardened steel. Delivered in a synthetic case. Capacity: 150 mm.

MSA-15.511
$43.50





Digimatic Electronic Caliper 6" (150 mm)

Made in Japan by Mitutoyo. Stainless steel, comfortable, smooth and easy to use. The Mitutoyo digmatic is our top quality electronic caliper. Measures inside and outside in inches and millimeters. Goes from inches to Millimeters with a touch of a button. Large LCD display is easy to read. o-6 inches with .001" accuracy, .0005" resolution; 0-150 mm with .03 accuracy, .01 resolution. Zero set button, carrying case and battery included, with a one year warranty.

FB-2401
$159.95

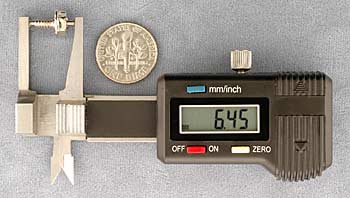

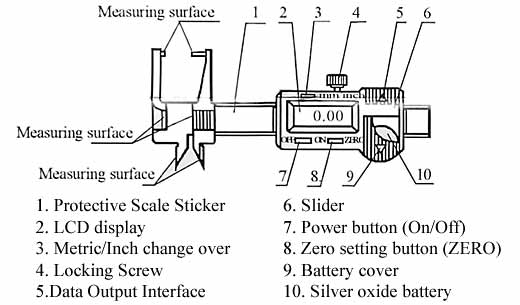

Mini Digital Thickness Gauge T940

Measuring range: 0.00 to 25.00 mm or 0 to 1" inch. Zero setting at any position. Metric or Inch system interchange at any position. Perfect for measuring small pieces and easy to store in tight spaces. Fits nicely into shirt pockets. Overall length of 3 1/2" inches. Comes in a black protective case with custom foam insert to hold gauge in place.

FB-T940
$65.70

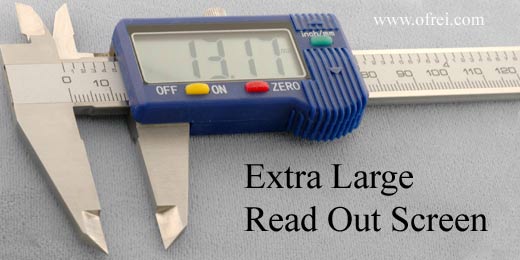

Electronic Digital Caliper Large Screen 150 mm

Electronic caliper made of hardened steel. Delivered in a synthetic case. Capacity: 150 mm. Big screen for easy reading.

MSA-15.503
$44.95





Horotec Caliper Adapter Set

Swiss made caliper adapter set converts a regular digtal caliper to easily measure inside thickness. Set comes with 2 adapters and 5 spindles (0.9, 1.4, 1.9, 2.4 & 2.9 MM). Caliper/Gauge NOT INCLUDED.

MSA 15.408
$88.95





Ruler Stainless Steel

Every shop needs one of these rulers, measures millimeters in 0.1 and inches by 16ths.

FB-2415
$2.80





Bevel Gauge, From Bergeon

Degree/Bevel Gauge

FB-2408
$72.50





Bergeon 30464 Gauge for Measuring Hand Hole Diameters

Bergeon hand gauge hole sizes .30 to 2.0 mm. Swiss made.

FB-100
$47.50





Bergeon 6740 Crown, Stem, and Case Tube Gauge

This handy Bergeon gauge should be on every watchmakers bench. Now you can measure the stem size, crown tap, crown diameter, crown opening, case tube diameter, and strap lug width with one single tool. Dimensions: 85 x 85 x 85 x 1 mm.

FB-115
$58.20





Bergeon Truing Caliper 4000

Caliper with steel points on both ends. Light type For timer. Pivot protectors in steel.

FB-2409
$58.80





Bergeon Truing Caliper 1884

Special order only, please allow 6 to 8 weeks for delivery. Small model with parellel opening. Pivot proctectors in steel with slide, carefully made. Pivot diameter .12 mm.

FB-2410
$153.95





Bergeon Truing Caliper 1883

Special order only, please allow 6 to 8 weeks for delivery. Large model with parellel opening. Pivot proctectors in steel with slide, carefully made. Pivot diameter .15 mm.

FB-2411
$199.50





Bergeon 4291 Depth-Tool For Wrist And Pocket Watches

High Precision. Brass nickel-plated and polished. Length of joint 65 mm, Depth 3.5 - 13 mm, handles length of staff up to 25 mm. Special order item.

BERG-4291
$992.00





Bergeon 6789 Flexible Measuring Band For Wrists

Resistant synthetic material. It fits easily to the wrist. Graduated in mm and inches. Easy use and measuring. Black in color. Goes up to 10 1/4" & 235MM.

BERG-6789
$5.00





Movement Ligne and American Size Gauge

Gauge measures in watch lignes sizes and millimeters on one side, while the other side gives American watch movement sizes.

For measuring the diameter (0 to 60 mm) or the number of ligne sizes (2 to 24) of a movement. Length: 108 mm.

MOVEMENT-GAUGE
$3.95





Watch Band Lug Size Gauge

What size strap do you need? With this handy gauge you would be able to answer that question in seconds. Made of 22 gauge sheet stainless steel this gauge will last a lifetime. Size the watch case lug or the watch band with this tool. Length: 125 mm. Graduations: 6 to 22 mm.


Measuring straps.

SUPERBAND-GAUGE
$18.95





Positive Stop Pitch Gauge

Measure the diameter of any hole from 0.45 mm to 1.50 mm with this positive stop gauge by Bergeon.

FB-2420
$42.00





8X LumiGauge Magnifier

8X magnifier with 0.1mm accuracy, adjustable focusing & illuminated gauge.

FB-29001
$19.80





ISO Swiss Watch Band Lug Size Gauge, Blue

Size the watch case lug or the watch band with this tool. Length: 85 mm. Graduations: 7 to 24 mm and 5/16" to 3/4". Equipped with a small fork to remove/install some spring bars. Blue in color.

FB-ISO-BLUEGAUGE
$3.95





ISO Swiss Watch Band Lug Size Gauge, Green

Size the watch case lug or the watch band with this tool. Length: 85 mm. Graduations: 7 to 24 mm and 5/16" to 3/4". Equipped with a small fork to remove/install some spring bars. Green in color.

FB-ISO-GREENGAUGE
$3.95





ISO Swiss Watch Band Lug Size Gauge, Yellow

Size the watch case lug or the watch band with this tool. Length: 85 mm. Graduations: 7 to 24 mm and 5/16" to 3/4". Equipped with a small fork to remove/install some spring bars. Yellow in color.

FB-ISO-YELLOWGAUGE
$3.95
