Hand, Setting Tools



Hand, Removers

Click Here for Hand Removers Page


Bergeon 5378 Hand Fitting Tool

With eight tips, hole sizes of .30, .50, .70, 1.15, 1.50, 1.70 millimeters, and a holder, now you will always have the right size hand setter. Nickel-plated base, 50 mm.

FB-420
$89.10





Bergeon 5409 Movement Holder for Attaching Hands

Movement holder for supporting the center wheel shaft while attaching hands. The top plate is engraved with circles to help center the movement on the rest rod. The rest rod is sustained by a spring and adjusts to the required height automatically.

FB-415
$103.00





Bergeon 7404, Set of 3 Hand Setting Tools

Set of three new double ended hand setting tools, Bergeon Swiss made. Contains 7404-1 (0.50 mm x 1.0 mm), 7404-2 (0.80 mm x 1.50 mm) and 7404-3 (center pointing x flat tip).

BERG-7404
$57.80

order.gif  checkout.gif



Bergeon 7404-S03, Set of 3 Hand Setting Tools with Stand

Set of three new double ended hand setting tools, Bergeon Swiss made. Contains 7404-1 (0.50 mm x 1.0 mm), 7404-2 (0.80 mm x 1.50 mm) and 7404-3 (center pointing x flat tip). Comes with a weighted stand to hold the tools when not in use.

BERG-7404-S03
$67.50

order.gif  checkout.gif



Bergeon Hand Setting Tool 7404-1

Recommended for the smaller hands on quartz watches. Double sided, on one end the diameter of the hole is 0.50 mm and the other end is 1.00 mm. If you have tried to put on quartz hands without this tool you know how hard that can be. This tool is a lifesaver and a timesaver and will also help with hole sizes as large as 1.5 mm.

FB-409
$19.80





Bergeon Hand Setting Tool 7404-2

Made for larger hands on both mechanical movements and chronograph quartz watches. Double sided, on one end the diameter of the hole is 0.80 mm and the other end is 1.50 mm. This tool is a lifesaver and a timesaver and will also help with hole sizes smaller and larger than the listed sizes.


BERG-7404-2
$19.80





Bergeon Hand Setting Tool 7404-3

Double sided, on one end is blue pvc with center pointing and flat tip made in brass on the other end.

BERG-7404-3
$19.80

order.gif  checkout.gif



Bergeon 8404-S04, Set of 4 Hand Setting Tools with Stand

Set of 4 special knurled handle hand setting tools with rotating heads. The special knurled handle provides a better grip and the rotating head helps index the hand better during installation. Hole diameter sizes 0.6, 1.2, 1.6 mm and no hole. The exterior diameter of the tip is 1.50 mm Comes with a weighted stand to hold the tools when not in use.

BERG-8404-S04
$169.95

order.gif  checkout.gif



Horotec Hand Setting Tool 0.5/1.0mm

Horotec hand setting tool with 0.5mm hole on one side and 1.0mm hole on the other. Knurled aluminium handle with delrin driven stakes.

MSA-05.010
$12.95





Horotec Hand Setting Tool 0.8mm & without hole

Horotec hand setting tool with 0.8mm on one side and no hole on the other. Knurled aluminium handle with delrin driven stakes.

MSA-05.011
$12.95





Horotec Hand Setting Tool 1.5/2.0mm

Horotec hand setting tool with 1.5 mm hole on one side and 2.0 mm hole on the other. Knurled aluminium handle with delrin driven stakes.

MSA-05.012
$12.95





Horotec Hand Setting Tool 0.65/1.10 MM

Horotec hand setting tool with 0.65 mm hole on one side and 1.10 mm hole on the other. Knurled aluminium handle with delrin driven stakes.

MSA-05.019
$14.50





Horotec Set of 4 Hand Setting Tools

Set includes MSA-05.010 (0.5/1.0mm), MSA-05.011 (0.80mm/no hole), MSA-05.012 (1.5/2.0mm), and MSA-05.019 (0.65/1.10mm).

MSA-05.020
$46.50





Horotec Hand Setting Tool Set with Rotating Base

Set comes with bit holder, 8 different sized tips, and a rotating stand to keep everything organized. Tip sizes include: Hole diameter/Exterior diameter - 0.00/2.00, 0.30/2.50, 0.80/2.60, 0.95/2.80, 1.10/2.90, 1.35/3.00, 1.50/3.2, 2.10/3.50.

MSA 05.030
$134.95





AF Switzerland Hand Setting Tool

Place hands on with ease using this tool. In plated brass, length 105 mm, body diameter 6 mm with 2 replaceable nylon tips. Hole diameters are 0.5 mm and 1.0 mm.

AF174.310
$16.95

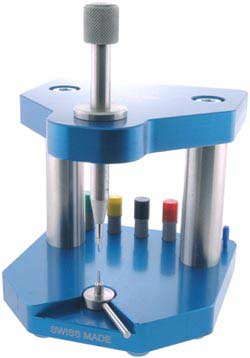

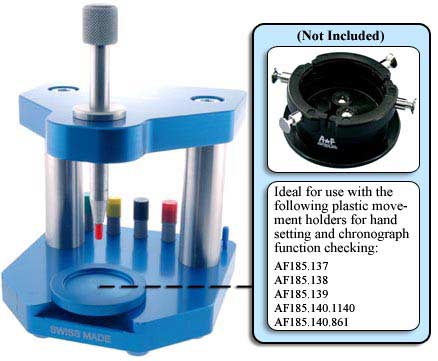

AF Multi-Function Press

This versatile tool can be used for various functions. It can be used to drive out pins from metal watch bracelets. Included are three 0.8 mm and three 1.0 mm pin punches.


It also functions as a tool for removing and fitting watch bracelet screws. Included are five 1.0 mm blades, three 1.2 mm blades, and three 1.6 mm blades.


It can even be used to fit and set watch hands and can be used with a movement holder (sold separately). Includes a 0.5 mm black hard nylon tip, a 0.80 blue hard nylon tip, a 1.0 mm white hard nylon tip, and a concave red hard nylon tip.


This multi-function press includes storage for the included blades, tips, and pin punches.

Click here for Replacement Blades, Tips, and Pin Punches for AF Multi-Function Press AF185.150.

AF185.150
$363.00





Replacement Plunger with Spring for MSA05.015

This replacement plunger & spring is for the older version of the MSA05.015. If your bits are press in, then this the correct plunger for your tool. If your plunger uses the screw in bits, then you will need the MSA05.017 plunger and spring.

MSA05.015-01
$20.50





Horotec Hand Setter

Hand fitting press for wrist and pocket watches.

Delivered with 8 different nylon screw on stakes stored on the press, spring-loaded for easy use. Equipped with plunger, spring, and screw on stake sizes: 0.50mm, 0.70mm, 0.90mm, 1.20mm, 1.50mm, 1.70, flat, and conical. Stakes are the same ones used in MSA05.017. Product size: 70mm x 70mm x 105mm.

MSA05.021
$79.95




Replacement Spring for MSA05.017 and MSA05.022

Spring Only.

MSA05.017-02
$6.50






Horotec Triple Hand Setter

Reduce hand-setting time with this hand setter by inserting different tips on each one of the plungers. Install the hour hand with one plunger, the minute hand with the second, and the second hand with the third. Horotec triple hand setter comes with 3 plungers, eight different nylon hand dies and plugs, is spring-loaded and easy to use. Uses the same plunger and spring as the MSA-05.015.

MSA05.022
$121.95




Replacement Plunger for MSA05.017 and MSA05.022

Plunger only. This plunger also works for the newer version of the MSA05.015 and MSA05.021. The bits are screwed in to the plunger and are not pressed in.

MSA05.017-01
$11.95






Replacement Nylon Hand Dies For Horotec Triple Hand Setter MSA05.017

Nylon hand dies available in 0.50, 0.70, 0.90, 1.20, 1.50, and 1.70 mm.


Bergeon 2676-B Hand Broaching Holder

The five or six that I found have long since been sold, once they were placed in our watch tool catalog. No worry, we have since received more of this great Swiss made product. For holding hands while broaching open the hole. Also great for holding other items as well.

FB-719
$79.60





Watch Hand Holders for Broaching

Medium Watch & Pocket Hands.

180.127
$29.95





Bergeon 3010 Tube-Tightener Set in Wood

Bergeon tool for tightening crown, case and hand tubes. This is the correct way to tighten any tubes between 0.40 to 2.60 millimeters.

In wooden case. With 18 interchangeable collets and 1 lever. The pipes are tightened evenly over their entire circumference. This ensures that they fit firmly and evenly on the hand arbor or crown.

FB-715
$579.95





Bergeon 6938 Dial Protection

For those who don't want to scratch and damage their dials while removing hands, this Bergeon dial protector is the tool to use. It's made of resistant synthetic material. Thickness of 0.15 mm. Color is off white with Otto Frei Logo.

BERG-6938
$1.50

order.gif  checkout.gif
Quantity   1 - 9     10 - 99     100+
Price $1.50 $1.20 $1.00
On Sale! $1.30 $1.08 $0.91



Dial Protection 70.004

For those who don't want to scratch and damage their dials while removing hands, this dial protector is the tool to use.

MSA 70.004
$1.50


Quantity   1 - 9     10 - 99     100+
Price $1.50 $1.20 $1.00
On Sale! $1.38 $1.08 $0.91



Bergeon Universal Protection Sheet 60mm Diameter

The Bergeon universal protection sheet can be used in many ways to protect your watch during repairs. Due to the flexibility and durability of the sheet, the sheet can be placed on top of the hands during removal to protect the dial and hands. The sheet can also be placed on the case back to prevent scratching by the case opener. Diameter of the sheet is 60mm. Swiss made.

BERG-7982-60
$3.60

order.gif  checkout.gif
Quantity   1 - 2     3 - 19     20 - 99     100+
Price $3.80 $3.30 $3.00 $2.45



Bergeon Universal Protection Sheet 85mm Diameter

The Bergeon universal protection sheet can be used in many ways to protect your watch during repairs. Due to the flexibility and durability of the sheet, the sheet can be placed on top of the hands during removal to protect the dial and hands. The sheet can also be placed on the case back to prevent scratching by the case opener. Diameter of the sheet is 85mm. Swiss made.

BERG-7982-85
$4.25


Quantity   1 - 2     3 - 19     20 - 99     100+
Price $4.25 $3.69 $3.25 $2.89


Economy Universal Protection Sheet 60mm Diameter, Pack of 5 pieces

The universal protection sheet can be used in many ways to protect your watch during repairs. Due to the flexibility and durability of the sheet, the sheet can be placed on top of the hands during removal to protect the dial and hands. The sheet can also be placed on the case back to prevent scratching by the case opener. Diameter of the sheet is 60mm. Made in China

FB-T9053
$11.95






New Bergeon Professional Hand Setter 8935

When having the best tools possible really count only this new hand setter from Bergeon will do. Set comes with 4 color coded bit holders and 4 color coded hand setting bits (Bit outer diameter/Hole diameter - 2.60mm/1.6mm, 2.10mm/1.20mm, 1.70mm/0.60mm, 1.50mm/No hole.) Movement holder is sold separately. Movement holders with a base diameter of 31mm will work on this hand setting tool. Click here for the Bergeon 1996 movement holder that will fit the 8935 hand setting tool.

Special order item. Please allow 4-6 weeks for delivery.

BERG-8935
$889.95
JCK Show Special $789.00





Bergeon Professional Hand Setter w/ 4 Runners 6012-4-P

Set comes with 4 bit holders and 4 hand setting bits (Hole diameter - 2.10, 1.35, 0.95, 0.30 mm) Movement holder is sold separately. Movement holders with a base diameter of 31mm will work on this hand setting tool. Click here for the Bergeon 1996 movement holder that will fit the 6012-4 hand setting tool.

Special order item. Please allow 4-6 weeks for delivery.

BERG-6012-4-P
$979.95





AF Movement Holder 185.138

Plastic movement holder for setting hands and checking chronograph functions. For ETA 251.252, 251.262, 251.265, and 251.272. 13 1/4 ligne.

AF185.138
$45.50





AF Movement Holder 185.137

Plastic movement holder for setting hands and checking chronograph functions. For ETA 251.471. 10 1/2 ligne.

AF185.137
$36.00





Hand Setting Tool 05.111 with Three Stakes

This Swiss Made tool features 3 stakes with plastic tips for safe, precise hand setting. High precision hands fitting press with revolving head to avoid changing broaches. Each broach is equipped with a knurled nut for fine height adjustment.

The tool holder swivels and snaps in place for perfect alignment. For use on hour, minute and decentred second hands.

MSA 05.111
$775.00





Bergeon 30464 Gauge for Measuring Hand Hole Diameters

Bergeon hand gauge hole sizes .30 to 2.0 mm. Swiss made.

FB-100
$47.50
